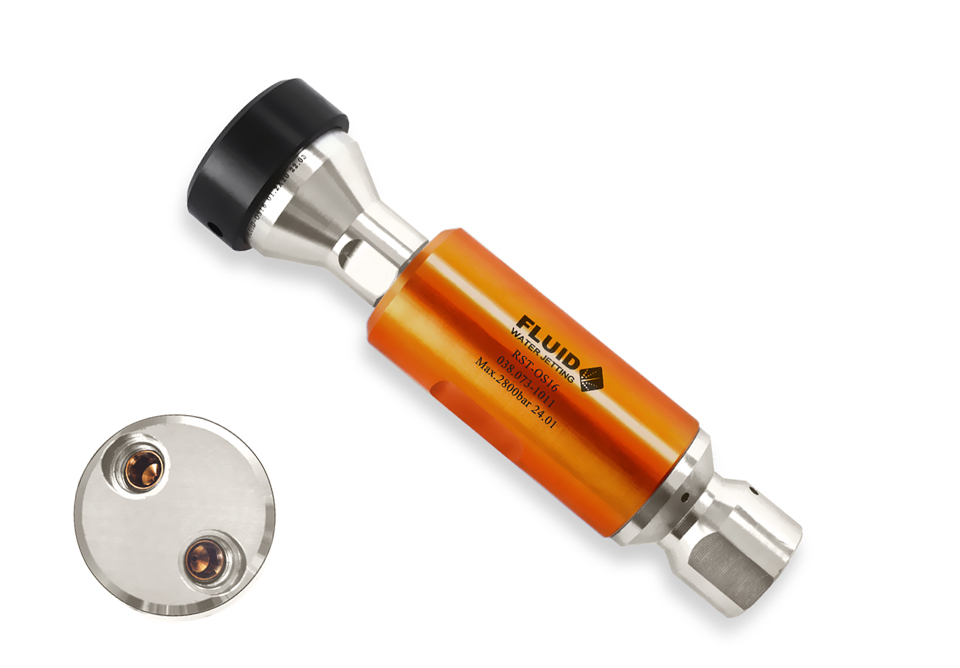

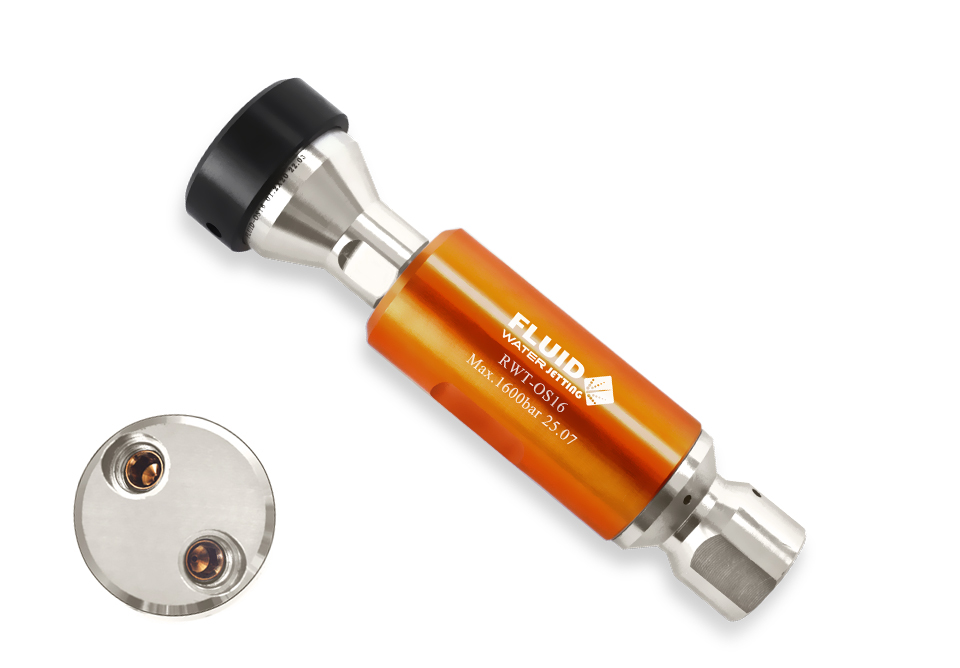

RWT-OS16
Product parameters


FEATURES:

■ Magnetic speed control, no need of regular maintenance.
■ Easy to change seal parts.

■ Light weight, easy to operate.


SPECIFICATIONS

Max. operating pressure：

      1600bar

     Flow range：

      10~30 l/min

     Rotation Speed：

      500~2500 rpm

     Diameter：

      Φ 37 mm

     Total length:

      168mm

     Approx. weight:

      0.78 kg

     Connection thread：

      M20*1.5 female or custom-made               adapter provided

     Sapphire nozzle：

       2 X M10*1.5


Nozzle Size

mm

Min. Pressure

bar

Max. Pressure

bar

Flow Range

l/min

Φ 0.6*2

800

1600

10~14

Φ 0.7*2

600

1500

11~18

Φ 0.8*2

500

1400

13~22

Φ 0.9*2

400

1000

15~24

Φ 1.0*2

300

800

16~27

Φ 1.1*2

250

600

18~28

Φ 1.2*2

200

500

19~30


Note: When manually operating high pressure guns and lances, the reaction force

on  the  axis should not exceed 250 N. A shoulder stock is required if  the reaction

force exceeds 150 N.
