ELECTRIC CONTROL GUN
Product parameters

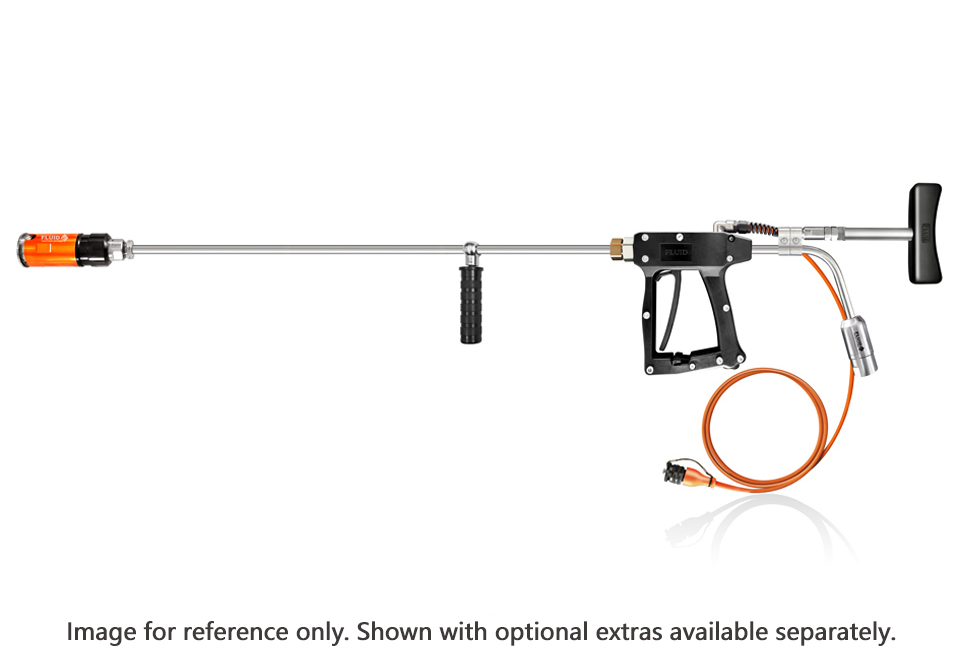

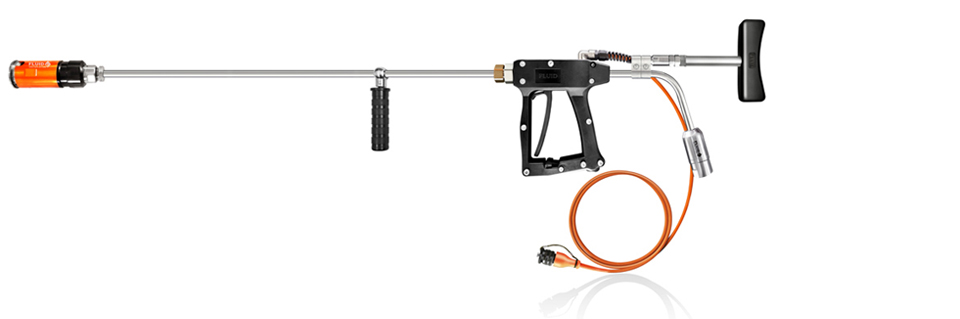

ELECTRIC CONTROL GUN SG3000-E

SPECIFICATIONS

Max. Operating pressure

3000 bar

Max. Flow rate

50 L/min

Max. water temperature:

50 °C

Max. permitted reaction force without shoulder stock:

150 N

Max. permitted reaction force with shoulder stock:

250 N

Weight approx. (with 750mm lance) :

4.2kg

High pressure inlet connection:

1-1/8-12 UNF

Waterproof rating:

IP65

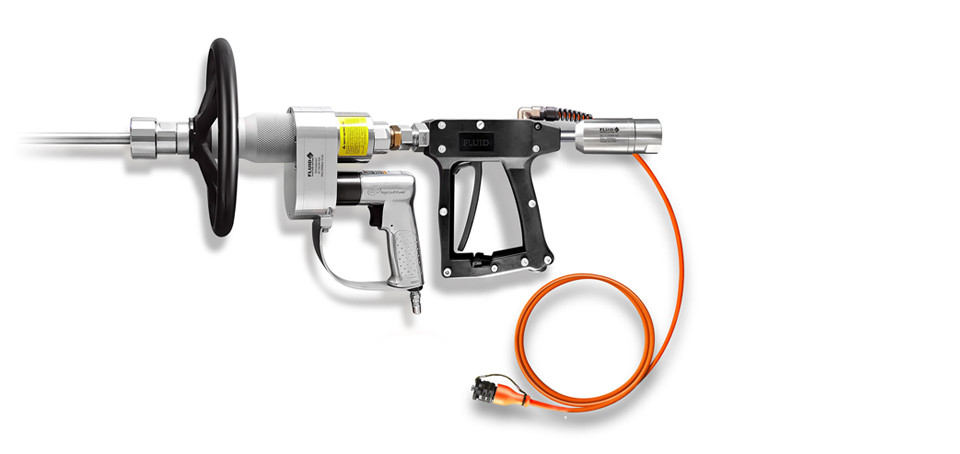

ELECTRIC CONTROL AND AIR-OPERATED ROTATING GUN: RSG3000/42TB-E

Typical Application: Specially designed for heat exchanger tube cleaning

SPECIFICATIONS

Max. Operating pressure

3000 bar

Max. Flow rate

50 L/min

Max. water temperature:

50 °C

Rotating speed:

10~500rpm

Air pressure:

4~6 bar

Max. air consumption:

7m3/h

Weight approx. (with 750mm lance) :

9.2kg

Waterproof rating:

IP65


FEATURES:

■ Lightweight aluminum & stainless steel construction.
■ The barrel supported on a ball bearing for smooth operation.
■ Highest quality air motor.
■ Quick change swivel seal assembly.
■ Can be ordered lance sizes in different lengths.



We specialise in the development and production of high pressure water jetting tools for waterjet technology applications.
