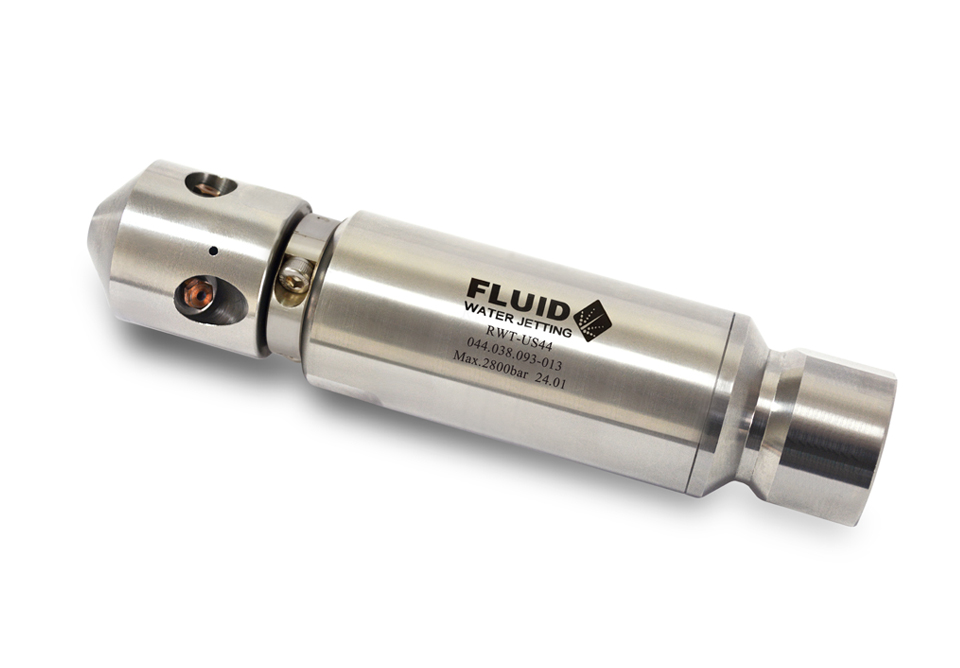

RWT-US44(1/4-28 UNF sapphire nozzles)

Product parameters

FEATURES:
□ Magnetic rotation speed control will reduce wear and gives better jetting impact.

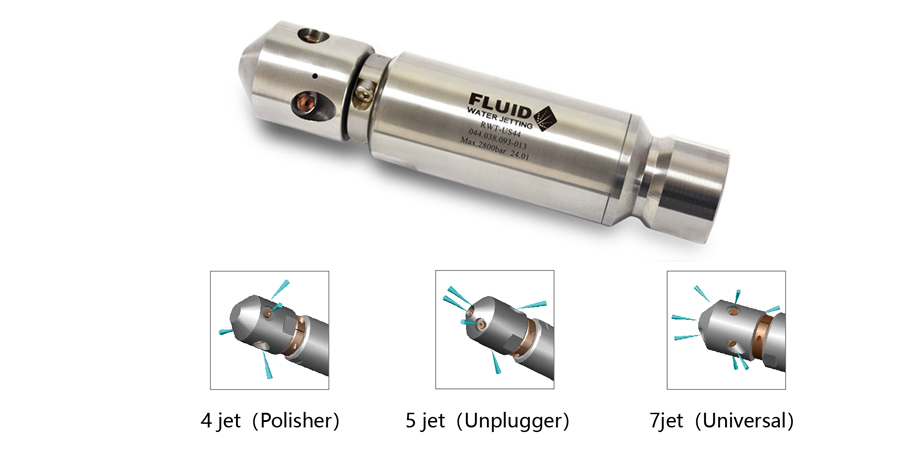

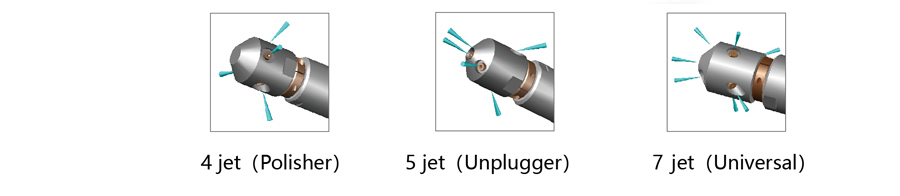

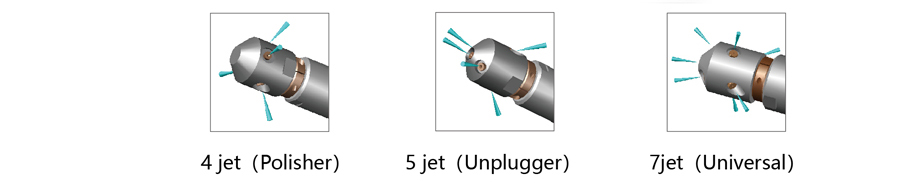

□ Three standard head configuration.

RWT-US44-20M* SERIES (1/4-28UNF sapphire nozzles)

Specification:

Max. Operating pressure：	2000bar
Max. Flow rate：	75 l/min
Rotation speed：	500~1500rpm
Max. Outer diameter：	ø44 mm
Length：	195 mm
Connection thread options(Adapters):	1-1/8-12UNF Female ● M24X1.5 male ● 3/8 NPT Female (Max 1035bar) ● 1/2 NPT Female(Max 1035bar

RWT-US44-28M* SERIES (1/4-28UNF sapphire nozzles)

Specification:

Max. Operating pressure：	2800bar
Max. Flow rate：	42 l/min
Rotation speed：	500~1500rpm
Max. Outer diameter：	ø44 mm
Length：	195 mm
Connection thread options(Adapters):	1-1/8-12 UNF Female

We specialise in the development and production of high pressure water jetting tools for waterjet technology applications.
