Home  >  PRODUCTS >  WATER JETTING TOOLS >  PIPE CLEANING TOOLS >  UFC70 PIPE CLEANING NOZZLES  >  RWT-UFC70-30M*

RWT-UFC70-30M*
Product parameters

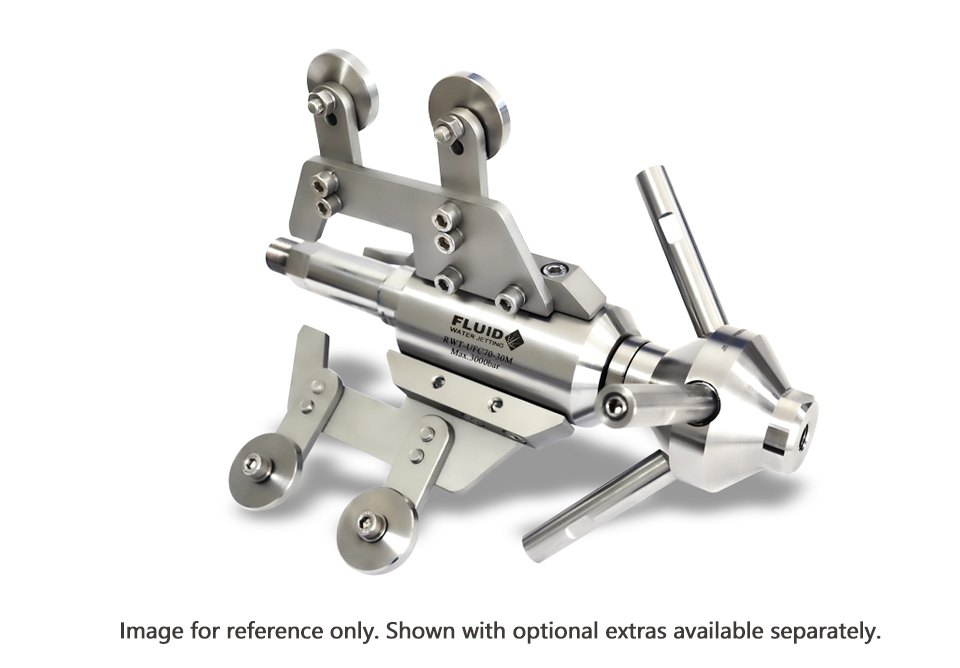

Image for reference only. Shown with optional extras available separately.


FEATURES:

□ Magnetic rotation speed control will reduce wear and gives better jetting impact.

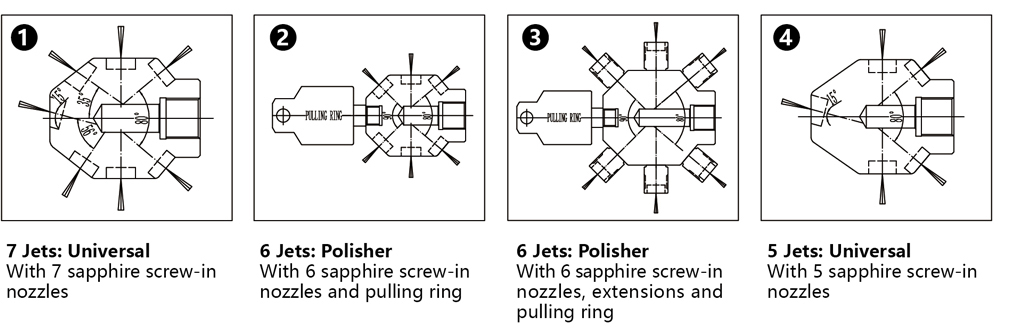

□ Four standard head configurations.


RWT-UFC70-30M*


SPECIFICATIONS

Max. Operating pressure：

3000 bar

Max. Flow rate：

75 l/min

Rotation speed：

approx. 200~1500rpm

Max. Outer diameter：

ø70mm (Not incl. centralizer)

Connection thread options(Adapters):


□1-1/8-12 UNF (Max3000bar)


We specialise in the development and production of high pressure water jetting tools for waterjet technology applications.
