RWT-UFC70-22M*
Product parameters

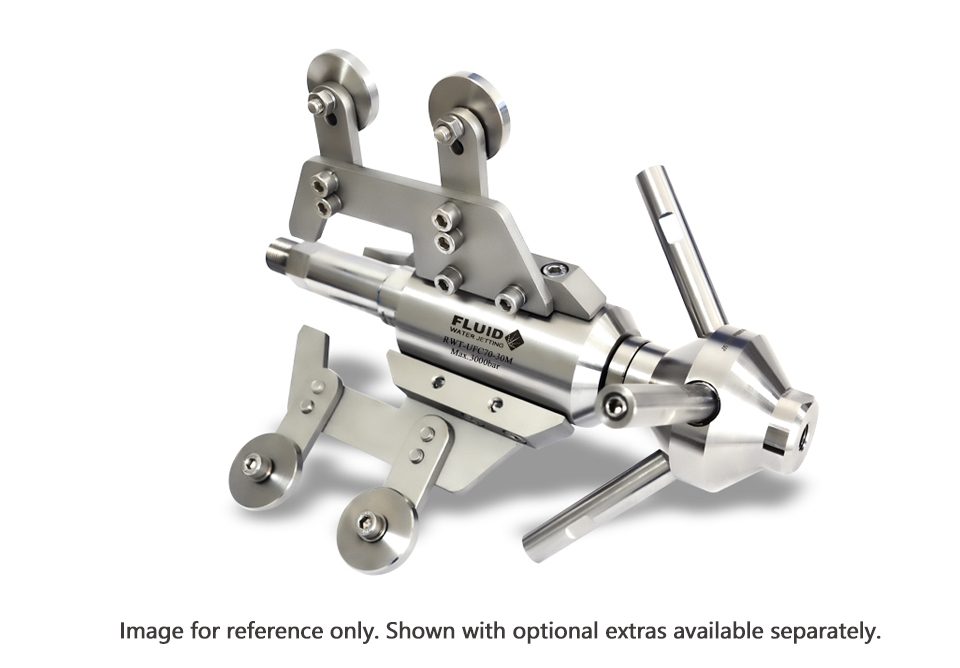

Image for reference only. Shown with optional extras available separately.



FEATURES:

□ Magnetic rotation speed control will reduce wear and gives better jetting impact.

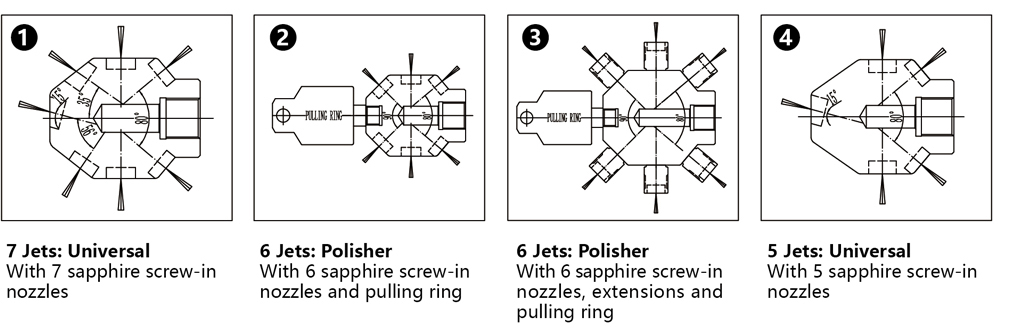

□ Four standard head configurations.


RWT-UFC70-22M*


SPECIFICATIONS

Max. Operating pressure：

2200 bar

Max. Flow rate：

168 l/min

Rotation speed：

approx. 200~1500rpm

Max. Outer diameter：

ø70mm (Not incl. centralizer)

Connection thread options(Adapters):

□M36*2.0 (Max1600bar)

□M24*1.5 (Max2000bar)

□1-1/8-12 UNF (Max3000bar)
