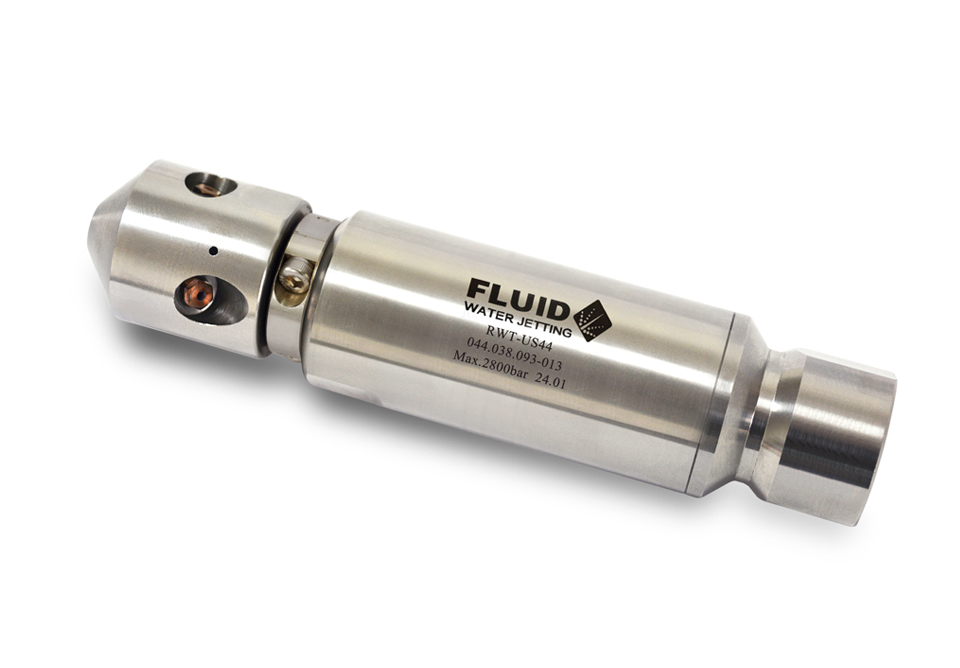

RWT-S44-28MS**(OD 44)
Product parameters


Technical Specifications:

Max. Operating pressure

2800bar

Max. Flow rate

42 l/min

Rotation speed

500~1500rpm

Max. Outer diameter

44 mm

Length

183 mm

Connection thread

1-⅛ -12 UNF  female  seal with a 60 degree cone or Custom-Made


Magnetic speed control, easy for maintenance.

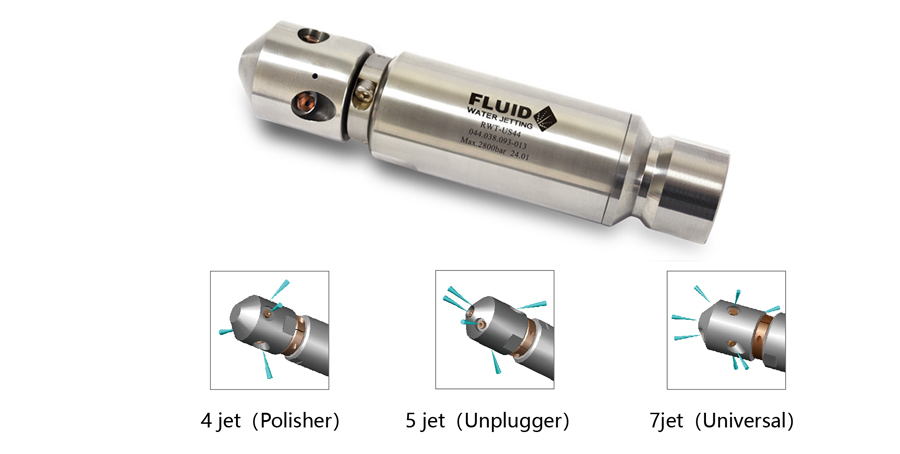

Nozzle Heads:

Three standard head designs are available with 1/4-28 sapphire nozzles. The universal head has total seven sapphire nozzles, three forward jet, two jets at 90 degrees and another two back jets; the polisher head has four sapphire nozzles, two at 90 degrees and another two back jet; the unplugger head has five sapphire nozzles, three forward jets and two back jets.


RWT-S44-28MS4*

With  four  1/4-28 sapphire  nozzles  screwed  in  nozzle  head,  two at 90 degree, two back jets.


RWT-S44-28MS5*

With  five 1/4-28 sapphire nozzles screwed  in nozzle head, three forward jet, two back jet.


RWT-S44-28MS7*

With seven 1/4-28 sapphire nozzles screwed in nozzle head, three forward jet, two jets at 90 degrees and another two back jets.
