RWT-FC70-20M*

Product parameters

Technical Specification:

Max. Operating pressure：	2000 bar
Max. Flow rate：	117 l/min
Rotation speed：	approx. 200~1500rpm
Max. Outer diameter：	ø70mm
Connection thread：	1-1/8-12 UNF Female or custom-made adapter provided

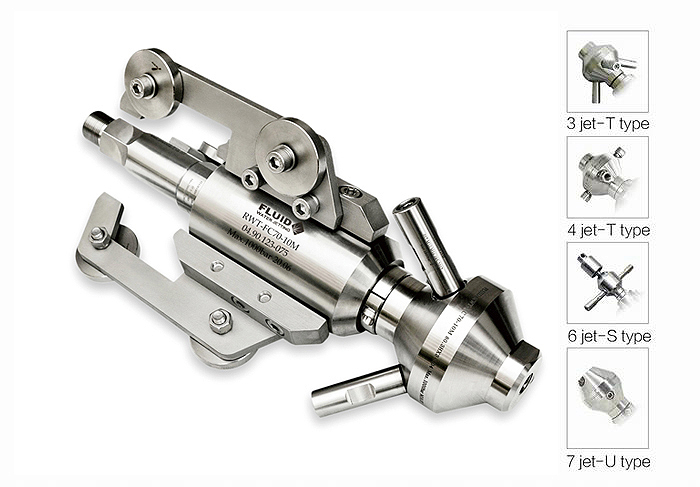

RWT-FC70-20M3

With three M10*1.5 sapphire nozzles screwed in nozzle extensions "T"

and back jets.

RWT-FC70-20M4

With four M10*1.5 sapphire nozzles screwed in nozzle extensions "T"

Two at 90 degrees, two back jets.

RWT-FC70-20M6

With total six M10*1.5 sapphire nozzles screwed in nozzle head or

nozzles extensions "S". Two forward jets, two at 90 degrees, two back jets.

RWT-FC70-20M7

With total seven sapphire nozzles screwed in nozzle head.

Three 1/4-28 nozzles forward jets, two M10*1.5 nozzles at 90 degrees, two M10*1.5 nozzles back jets.
